What needed to be done:
3/9/2013
Continue looking at how the electronics were going to function:

What was done:
Added more detail to the electronic/sui concepts.

What was produced:

 Clarity on issues having to do with how he computer interface will allow me to do.
Using a control pad on the suit instead of on the floor to adjust parameters in real time.
This would allow parameter changes to be implemented with less distractions i.e. more organically as they occurred to me during performance.

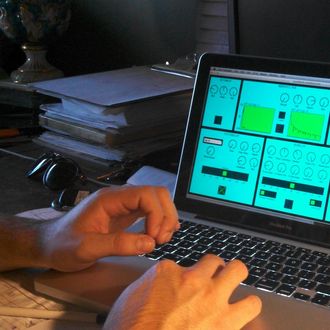

The interface which allows control of the sound modules.

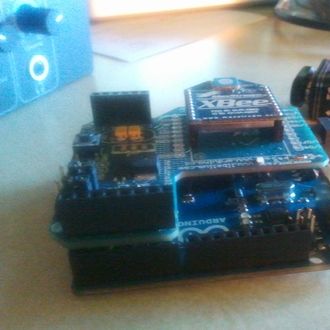

The first group of sensors. The sensor will pick up the sound, sens itt over the wire to the Arduino, go through the Arduino to the computer. The signal will get modified depending on the knobs on the interface we modify, then go out to the speakers.

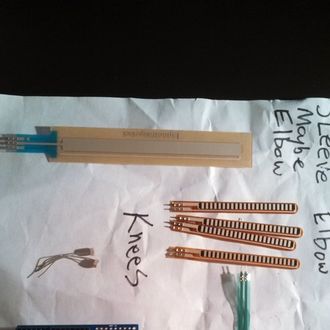

The first group of sensors. The sensor will pick up the sound, sens itt over the wire to the Arduino, go through the Arduino to the computer. The signal will get modified depending on the knobs on the interface we modify, then go out to the speakers.

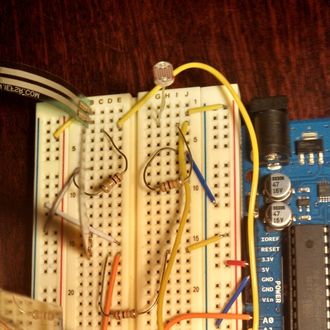

The circuits that will cary signals fom the sensors to the wires, then to the arduino, then to the computer then to the speakers.
